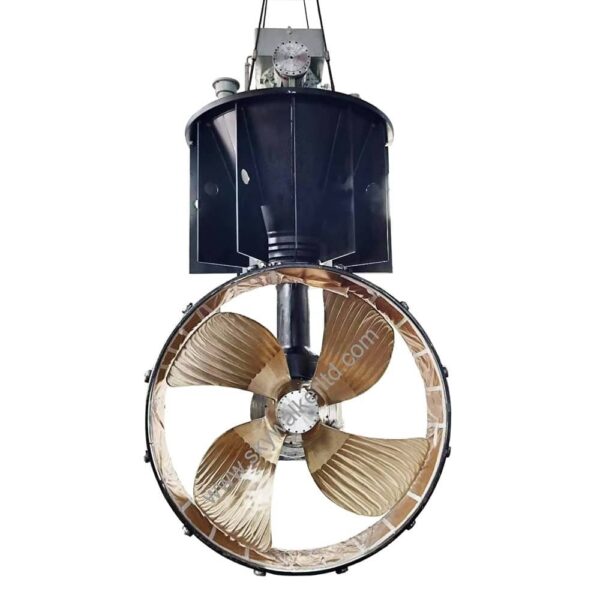

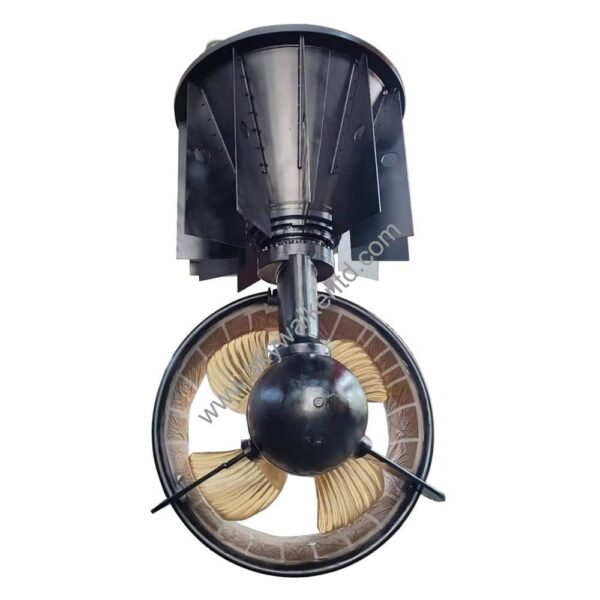

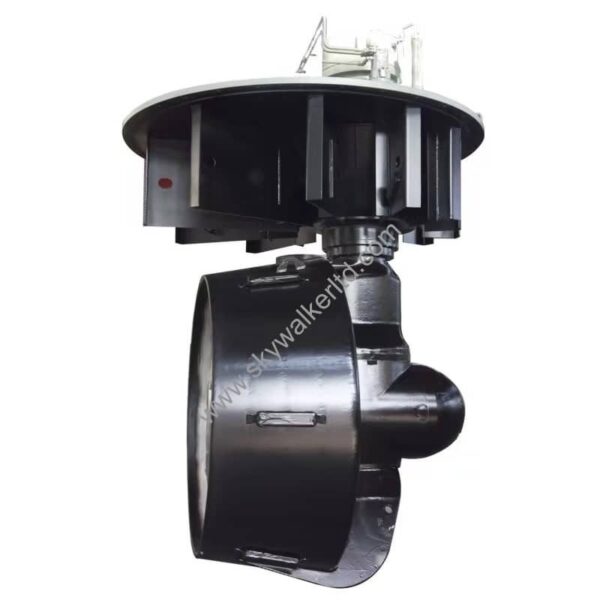

A well-mounted azimuth thruster is a specialized propulsion system used in marine applications. It provides thrust and maneuverability to vessels. What is “Well-mounted”? Because the azimuth thruster is installed in a well or a specially designed compartment in the hull of the ship. It reduces drag and minimizes the risk of damage to the propulsion system because of this configuration.
Unlike traditional propulsion systems, shipyards usually mount azimuth thrusters on the lower hull of ships so that they can rotate 360 degrees horizontally. This unique design of a well-mounted azimuth thruster enables precise and efficient control of the vessel’s direction, making it especially valuable for dynamic positioning and precise maneuvering in confined spaces.
Features
Both compact design and reliable performance.
The propeller can steer in any direction of 360°.
An electric motor or a diesel engine can drive the azimuth thruster.
Drive power is up to 7000 kW due to its durable design.
A hydraulic system is available.
A propeller nozzle is optional.
A retractable propeller is optional.
Application
Many ships adopt well-mounted azimuth thrusters nowadays, such as large tugboats, harbor tugs, drilling platforms, ocean engineering vessels, FPSOs, etc.

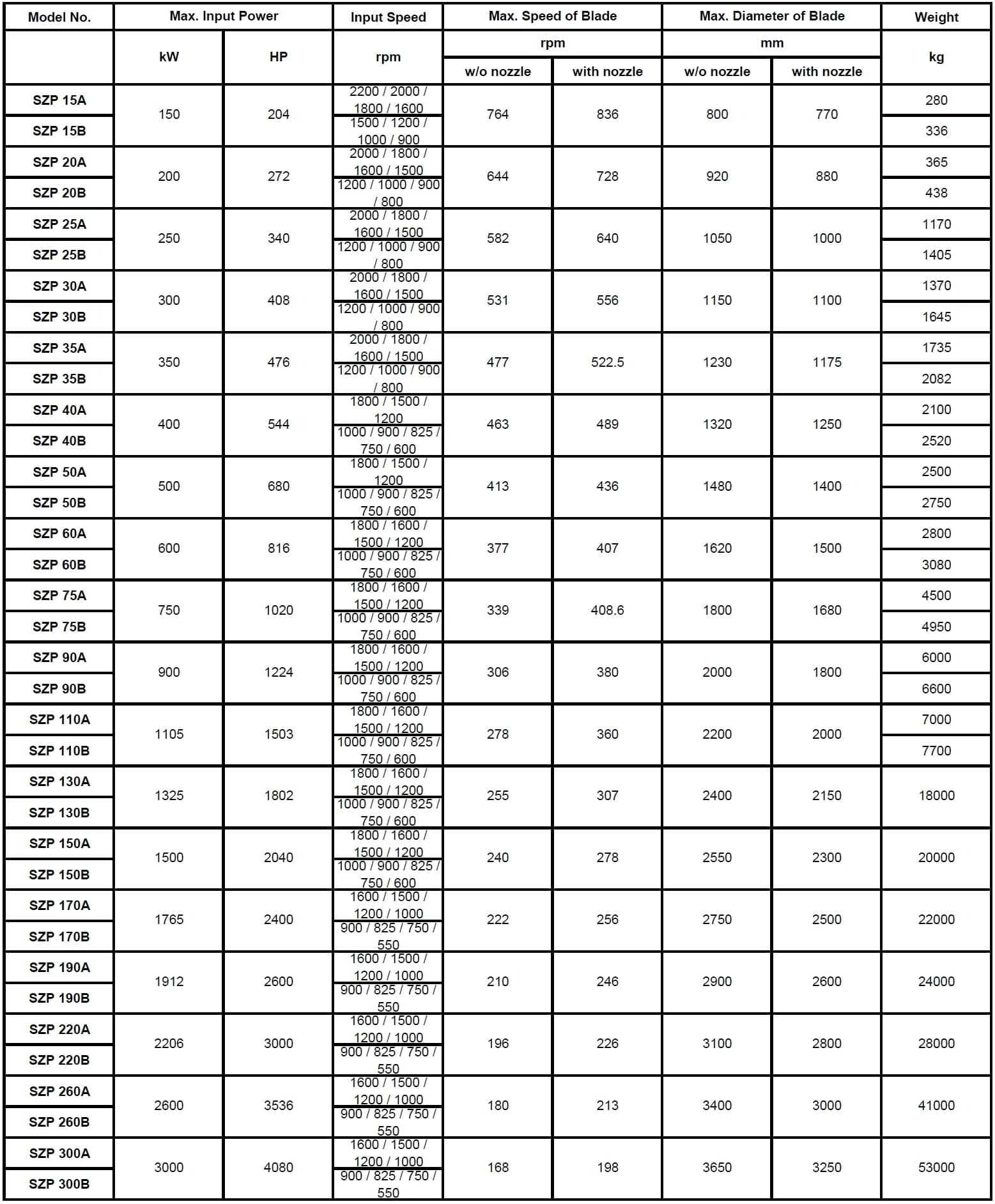

Specification
