A flexible fin stabilizer can extend out of the hull and follow a straight line when working and straight back when not working.
Feature
1. A small opening of the fin box, takes up less internal space in the ship length-wise direction.
2. Optional flapped fins or flapped tail fins are available for a maximum lift increase of more than 50 percent for the same fin area.
Composition
2 fins, 2 actuators, 2 hydraulic units, 1 control panel in the bridge, and 1 control box in the cabin.
Application
Suitable for a ship that requires high speed.
Type: warship, etc.

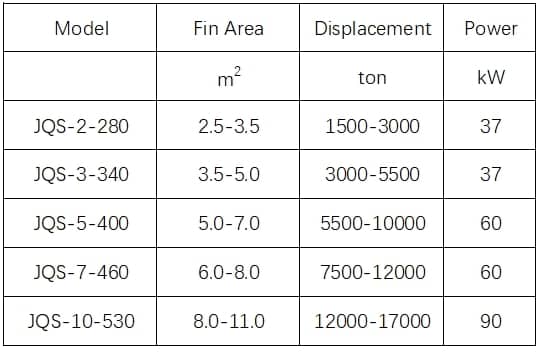

Specification
